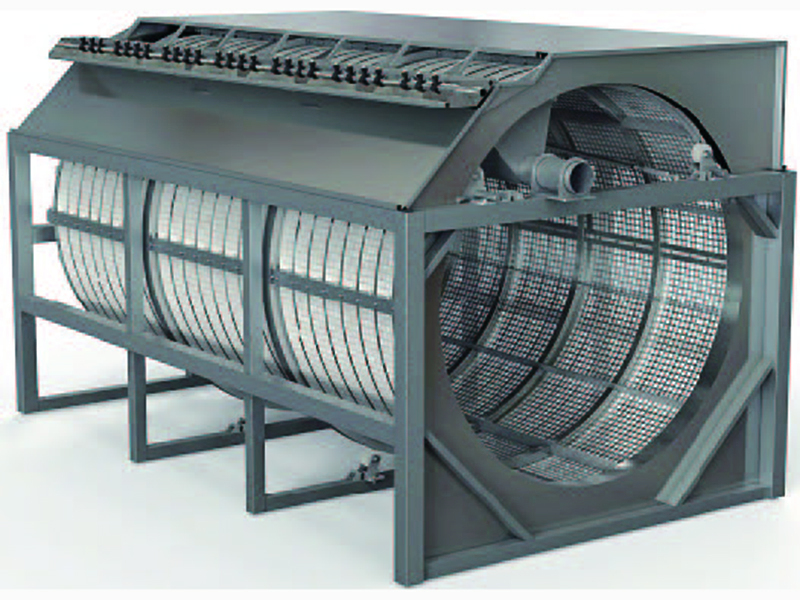

Drum Screen Filter

This is an aquaculture filtration equipment that uses water level sensors to automatically control filter cartridges.Most solid particles can be filtered out.

 Request for quotation

+86 139 6389 6765

Product Description:

This is an aquaculture filtration equipment that uses water level sensors to automatically control filter cartridges. Most solid particles can be filtered out.

Product Specifications:

Water temperature °С	Pollution load(mg/l)	Filtration accuracy (µm)	Treatment capacity（m3/h）
			Model
			UTDF -50F	UTDF -65F	UTDF -100F	UTDF -200F	UTDF -300F	UTDF -400F	UTDF -500F	UTDF -700F
14-16	10	40	64	90	180	265	400	535	690	1000
		60	85	115	225	325	500	660	850	1250
		100	115	155	305	450	670	1130	1150	1650
	25	40	42	65	120	190	280	365	470	700
		60	67	85	150	250	370	495	650	950
		100	91	125	220	370	550	735	950	1350
20-25	25	40	37	50	80	150	220	290	380	550
		60	50	65	100	200	300	400	500	700
		100	70	100	175	300	450	585	745	1080
25-30	75	40	10	17	35	50	75	96	125	175
		60	16	22	45	65	95	130	170	245
		100	25	35	65	100	145	195	250	355
Overall dimension(mm)		Length（mm）	1000	1200	1800	2100	2600	2800	3000	3600
Overall dimension(mm)		Width（mm）	750	950	950	1260	1260	1650	2000	2000
Power（kW）			0.25	0.25	0.25	0.25	0.25	0.25	0.25	0.25

Product Applications:

Filter the solid particles from the aquaculture water.
