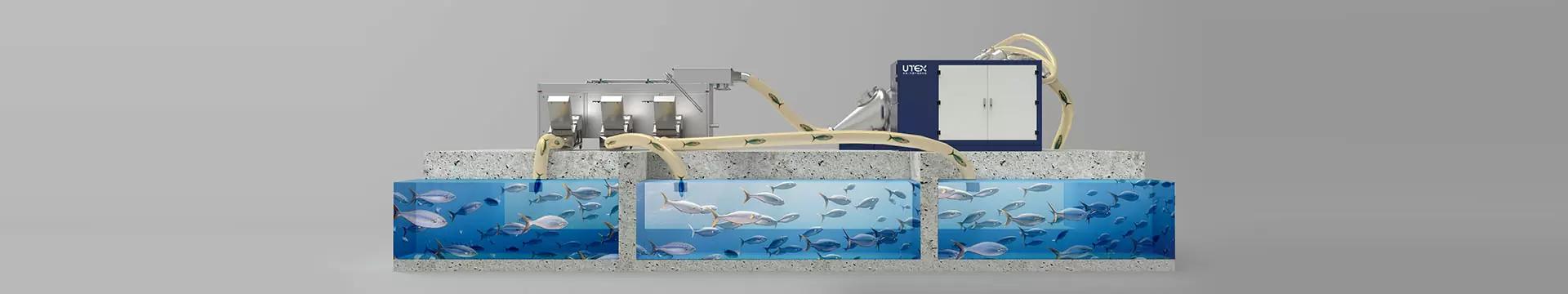

Fish Counting System
The fish counter is designed to count fingerlings or mature fish.It utilizes machine-learning vision algorithms to achieve quick and highly accurate counting,with an accuracy of over 99%.

Description:

The fish counter is designed to count fingerlings or mature fish.It utilizes machine-learning vision algorithms to achieve quick and highly accurate counting,with an accuracy of over 99%.Additionally, it can store image data and create detailed counting reports for verification of the counting results.This technology is widely utilized in the fields of RAS or marine ranching aquaculture.It is suitable for rainbow trout,Atlantic salmon,black croaker,sea bream,bass,yellow croaker,tilapia,mandarin fish,turtles,and other fishes.


Tchnical data:

ModelFC-G5FC-G6FC-G8FC-G10
Fish weight min.-max. (Trout/Salmon) (g)5~10010~60030~100050~2200
Max. Counting Speed (pcs/h)200k (5g)150k (10g)50k (30g)30k (50g)
Accuracy>99%>99%>99%>99%
Inlet Diameter (inch)5"6"8"10"
VoltageAC 220VAC 220VAC 220VAC 220V
Moter power (W)120120200200
Max. Weight (kg)≤70≤75≤80≤85
Max. Dimension L×W×H (mm)1400×650×9001400×700×10001500×800×11001500×900×1200


Remarks:

1、The above parameters are only for equipment selection reference,the actual parameters should be calculated based on the actual working conditions such as  fish species, fish to water ratio, suction & discharge head,  conveying distance etc.

2、This document does not serve as a technical attachment to the contract.Yantai UTEX Fishery Equipment Co., Ltd. reserves the right to make necessary modifications to the equipment technology and configuration at any.
